Arduino Pro Mini: Pinout, Datasheet, Features, IDE and Simulation

Despite its compact body and small size, the Arduino Pro Mini has a rich feature set that makes it a versatile and powerful option when working with embedded and electronic projects. With 14 digital input/output pins, including 6 PWM-capable outputs and 6 analog inputs, this smart board fits the requirements of a large variety of projects. Moreover, it supports I2C, SPI, and UART communication protocols, ensuring seamless integration and communication with other devices. Unlike Arduino Nano(A000005), it lacks a built-in USB, which helps in reducing the size. So, we need to use an external USB to Serial Adopter in order to program the board.

In this article, I am going to discuss the basic information about the Arduino Pro Mini, including the introduction, history, datasheet, specifications, main features, pinouts, IDE, and applications. Moreover, by the end of this article, you’ll be able to create a simple simulation using the Arduino IDE and Arduino Prio Mini microcontroller. Let’s get started.

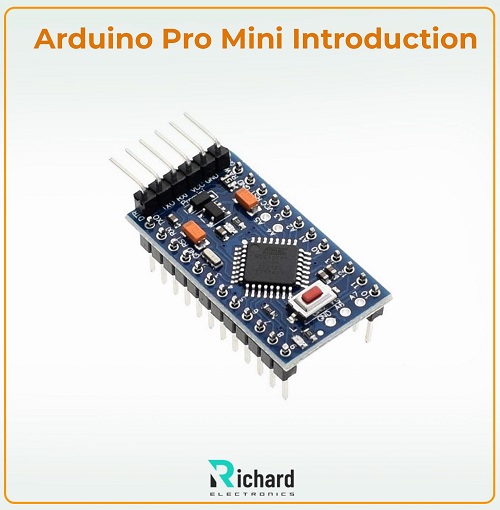

Arduino Pro Mini Introduction

● Arduino Pro Mini is a compact, small, but powerful microcontroller board developed and represented by Arduino.cc.

● This board was introduced for space constraints and cost-effective projects and uses the ATmega328P microcontroller as its core.

● Out of 16 digital IO pins, 6 are the PWM output, which makes it a good choice for speed-controlled projects.

● The 8 analog pins of this board are utilized for the connection of devices like sensors where the output continuous values are required.

● The Arduino Pro Mini is six times smaller than the Arduino UNO but has the same processing power.

● It has two basic types, the details of which will be shown in the next section.

● The Arduino Pro Mini is termed the application-type microcontroller because the USB-to-serial port is removed from the board to save space.

● The programming of the Arduino Mini is the same as the other board, that is, the Arduino IDE is used for the uncomplicated and open-source coding process.

● The pin 13 has a small LED on the board and it also has the RESET button for the ease of the users.

Arduino Pro Mini History

Arduino Pro Mini was introduced in 2005 as part of the Arduino platform to cater to the needs of developers and engineers requiring a compact and powerful microcontroller at a low price by Sparkfun Electronics. The founder of this organization was Nathan Seidle, who had an eye on the trends and needs of the microcontroller board users. The main reason for this introduction was to fulfill the needs of the project where power consumption, size, and simplicity were the key considerations. So, the designers added the ATmega328P microcontroller as its heart and omitted the onboard USB to serial adaptor from the board to provide a small and cost-efficient board. At the start, it was considered the smaller version of the standard Arduino UNO.

In the late 2000s, the Arduino family gained popularity among hobbyists, engineers, and programmers, and as the community grew, different users demanded the smaller and more popular boards. By the end of this decade, the Arduino Pro Mini was equally famous among students, learners, teachers, and professionals, and the main applications were found in DIY projects, the Internet of Things (IoT), and wearable devices.

In 2010, the two options for the Arduino Pro Mini were introduced, that is:

1. 5V version running at 16 MHz

2. 3.3V version at 8 MHz

These variants cater to different voltage and power requirements and fit into projects with different windows to target almost all types of users.

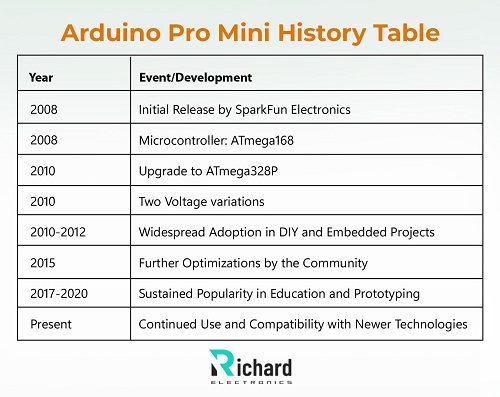

Arduino Pro Mini History Table

The Arduino Pro Mini is a relatively latest version of the Arduino family but it has gone through different upgrades over the years. Collecting the information about each event is irrelevant to this article, so I have created a table showing the steps through which the Arduino Pro Mini has gone:

Arduino Pro Mini Datasheet

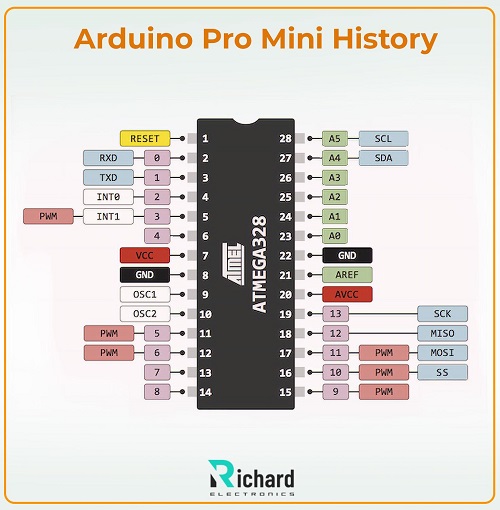

The powerhouse of the Arduino Pro Mini is the ATmega328P microcontroller, which is an 8-bit AVR processor that runs on very low power and has the RSIC architecture. Understanding the features and specifications of the ATmega328P microcontrollers is essential to understanding the specification of the Arduino Pro Mini so if you want to go into its details, visit the following link:

Arduino Pro Mini Datasheet

Arduino Pro Mini Specifications

The Arduino Pro Mini stands out as a minimalist yet powerful microcontroller and while introducing it for the first time in the market, the manufacturers have discussed in detail that despite its compact size, it comes with all the core functionalities that the user may expect from the Arduino board. Let’s check all its features in detail and start from the built-in memory.

Arduino Pro Mini Memory

There are different types of memory in electronic devices and to advance the versatility of this board, the designers have used three types of memory in the Arduino Pro Mini:

1. Flash memory

2. SRAM

3. EEPROM

The details of each of them, along with the basic definition, are below given:

● The flash memory is the non-volatile memory, which means it retains the data even in power-off mode. The Arduino Pro Mini uses it to store the programming codes called sketches and utilize them while working. It has 32KB of flash memory, out of which 0.5KB is used for the bootloader code.

● Static random-access memory (SRAM) is the type of volatile memory that loses all the data when the power is removed. It is the temporary storage in the microcontroller that stores the temporary variables and other such data while the code is running. In Arduino Pro Mini, the SRAM is limited to 2 KB, and it is crucial to utilize this memory for effectively running the program.

● The EEPROM (Electrically Erasable Programmable Read-Only Memory) is the non-volatile memory and allows the data to be removed or written through the electrical signals. As a result, it allows the data to be written, modified, or removed during the microcontroller functions. The total size of the Arduino Pro Mini’s EEPROM is 1KB.

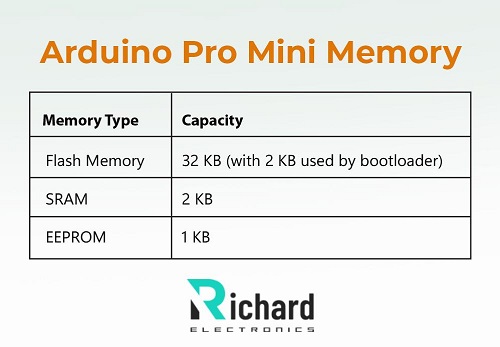

Here is the table of the memory specifications of this microcontroller:



Arduino Pro Mini Power Consumption

Both versions of Arduino Pro Mini run on very low power. It makes it an ideal choice for battery-oriented projects, especially where power consumption is the critical factor. It is designed to enter sleep mode to conserve energy when it is not running the resource-intensive task for a long time.

Arduino Pro Mini Programming Modes

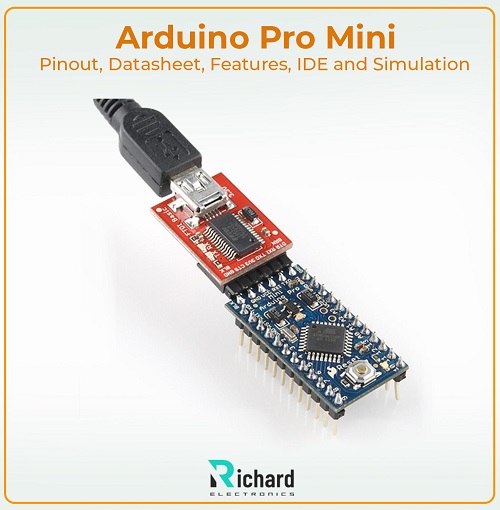

Unlike other members of the Arduino family, the Arduino Pro Mini lacks an onboard USB-to-serial converter; therefore, an external FTDI or CP2102 adapter. This approach makes it different from other boards and reduces the need for more space and power but is considered an extra step when programming using this board.

The other mode for the Arduino Pro Mini is ICSP (In-Circuit Serial Programming) and the hardware programmer is required to adopt this method. It consists of the size pins:

● MISO

● MOSI

● SCK

● RST

● VCC

● GND

This is utilized when the user does not want to opt for the aforementioned process.

Arduino Pro Mini Physical Dimensions

The most highlighted feature of the Arduino Pro Mini is its small size. Unlike other Arduino boards, it comes in the size of 18 mm x 33 mm; it is a perfect choice for wearables and other such devices with space constraints as the main feature.

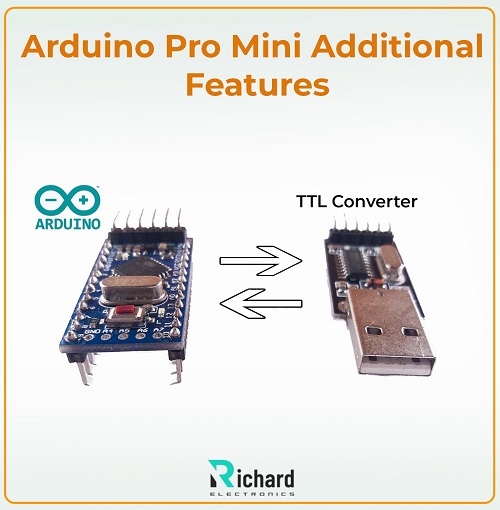

Arduino Pro Mini Additional Features

In the Arduino family, the basic features of the boards are almost the same but they differ in some additional features, Below is the list and description of some important features:

● The Arduino Pro Mini has the physical reset button that is absent in many other Arduino board. This helps the users to rest the whole code manually in just one button.

● This board comes with the availability of the raw mode and is an alternative approach to the external USB-to-serial converter for direct communication with the microcontroller.

● It has an onboard power LED that indicates the power supply when the board is connected to any source.

● The digital pin13 of Arduino Pro Mini is considered the status LED and verifies the proper running or debugging of the board.

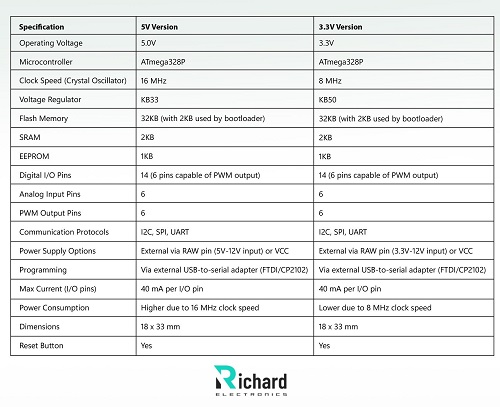

As mentioned earlier, the Arduino Pro Mini comes in two variants, one that operates on the 5V and the other that operates on the 3.3V. The details of both of these versions with respect to their similarities and differences, are discussed in the table below:

Arduino Pro Mini Key Aspects

Here is the detail of the broader characteristics and qualities of the Arduino Pro Mini to focus on its usability and advantages:

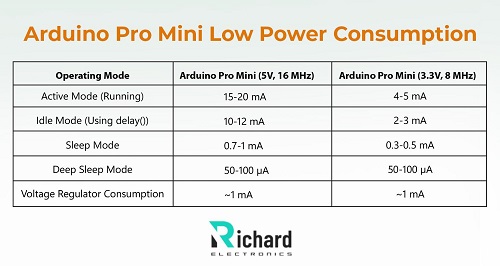

Arduino Pro Mini Low Power Consumption

The compact design of the board not only reduces its size but also the need for power. It has three power-consuming modes:

1. Active mode: When the board is running

2. Idle mode: Using delay() or similar

3. Sleep mode: Using power-saving techniques

Both variants of Arduino Pro Mini consume different amounts of power and the table shows the details

Arduino Pro Mini Pre-Soldered Headers

Unlike other Arduino boards, the Arduino Pro Mini does not come with pre-solder headers and provides the freedom of the user to connect and customize the board according to the project's needs. The three most common options for the board connection are:

● Straight header

● Angled header

● Connecting wires

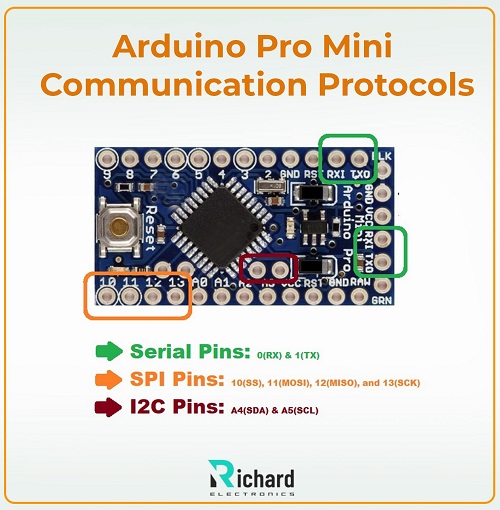

Arduino Pro Mini Communication Protocols

The Arduino Pro Mini has three communication protocols:

● UART (Universal Asynchronous Receiver/Transmitter): It is used for communication with other devices such as computer modules, or any other.

● SPI (Serial Peripheral Interface): It is useful for high-speed communication with peripheral devices such as sensors.

● I2C (Inter-Integrated Circuit): it is preferred when multiple device communication is required on a single bus.

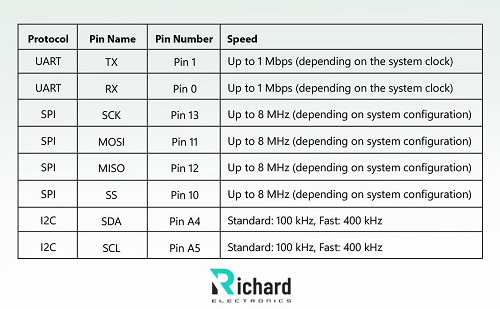

The table elaborates these protocols, pin numbers, and speed with respect to the Arduino Pro Mini:
